1969 Chevrolet Corvette Specification's

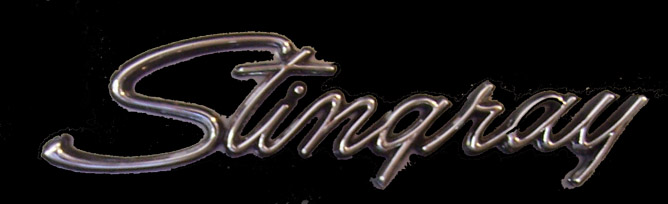

        The Stingray name (now spelled as one word)

         appears on the front fenders above four vertical fender vents.

  The backup  lights  were integrated into the center tail lights, vs the 68 with Backup lights located below the Bumpers.

 The fenders are unflared and the front cornering lamps are round.

The ignition was moved onto the steering column and the door depression button used in 1968 was eliminated.

A key lock was put in it's place. The interior has glove box mounted map pockets but no wood on the door panels.

Front and rear disc brakes, headlight washers, center console, wheel trim rings, carpeting and all vinyl upholstery are standard.

The 1969 Corvette build cycle was from September 1968 until December 1969.
One of the longest build cycles for a US car.

Serial Numbers: 194379S700001 through 194379S738762   --   For Convertibles, the fourth digit is a "6"




Total Build   38,762


Convertibles   16,633


Coupes   22,129



Basic Specifications


FEATURE SPECIFICATION
Engine: 350 cubic inch V-8
Horsepower: 300@4800rpm standard
Compression Ratio: 10.25 to 1
Carburetor: Four Barrel
Transmission: 3 speed manual standard
Shippng Weight: 3091 lbs (coupe) 3096 (convertible)
Production Total: Total 38,762 (22,129 coupes) (16,633 convertibles)
Factory Price: $4781 (coupe) $4438 (convertible)
Chassis Dimensions: Wheelbase 98 inches
Length: 182.5 inches
Width: 69.0 inches
Height: 47.8
Ground Clearance: 6.0 inches
Front tread: 58.7 inches
Rear tread: 59.4 inches
Tires: F70x15





Engine Data


69 Vette Base 350 L46 350 L36 427 L36/L68 427 L71 427 L88 427
HP @ RPM 300 @ 4800 350 @ 5800 390 @ 5400 400 @ 5400 435 @ 5800 600 @ 5800
Torque @ RPM 380 @ 3200 380 @ 3600 460 @ 3600 460 @ 4000 460 @ 4000 550 @ 4000
Compression Ratio 10.25:1 11:1 10.25:1 10.25:1 11:1 12.5:1
Carburetion 4bbl Rochester 4bbl Rochester 4bbl Rochester 2bbl Holley 3x2bbl Holley Large 4bbl Holley
Intake Manifold Cast Alloy Iron Cast Alloy Iron Alloy Aluminum Alloy Aluminum Alloy Aluminum Alloy Aluminum
Valve Lifters Hydraulic Hydraulic Hydraulic Hydraulic Mechanical Mechanical
Exhaust Dual, 2.0" Dual, 2.0" Dual, 2.0" Dual, 2.0" Dual 2.0" Dual 2.0"
Oil Capacity 5qts w/filter 5qts w/filter 6qts w/filter 6qts w/filter 6qts w/filter 6qts w/filter
Spark Plugs ACR44S ACR44S ACR43N ACR43N ACR43N ACR43XL


Engine Suffix


LT: 427ci, 435hp MT, HC
GD: 350ci, 300hp MT, AC, IG
LU: 427ci, 395hp MT, AH, HC
HW: 350ci, 300hp MT
LV: 427ci, 430hp (L-88) AT
HX: 350ci, 350hp MT, AC
LW: 427ci, 435hp AT, AH
HY: 350ci, 300hp MT
LX: 427ci, 435hp AT
HZ: 350ci, 300hp AT
ME: 427ci, 430hp (ZL1) MT
LL: 427ci, 390hp AT
MG: 427ci, 430hp (ZL1) AT		 LM: 427ci, 390hp MT
MH: 427ci, 390hp MT, IG
LN: 427ci, 400hp AT
MI: 427ci, 390hp AT, IG
LO: 427ci, 430hp M
LO: 427ci, 430hp MT
MJ: 427ci, 400hp AT, IG
LP: 427ci, 435hp MT, AH
MK: 427ci, 400hp MT, IG
LQ: 427ci, 400hp MT
MR: 427ci, 430hp (L88) MT
LR: 427ci, 435hp MT
MS: 427ci, UU		 MT=Manual Trans
AT=Automatic Trans
PS=Power Steering
AC=Air Conditioning
AH=Aluminum Head
IG=Transistor Ignition
HC=Heavy Duty Clutch
UU=Uncertain Usage





Drivetrain Combinations


Engine Transmission Standard Economy Performance Special
Standard 350 2.54:1 3spd
2.52:1 4spd
Turbo Hydro		 3.36:1*
3.36:1*
3:08:1 		 3.08:1
3.08:1

L46 350 2.52:1 4spd
2.20:1 4spd		 3.36:1*
3.70:1 		   3.55:1
4.11:1
L36 427 2.52:1 4spd
2.20:1 4spd
Turbo Hydro		 3.08:1
3.36:1
3.08:1
3.08:1
2.73:1		 3.36:1
5.55:1

3.70:1

L36/68 427 2.52:1 4spd
2.20:1 4spd
Turbo Hydro		 3.08:1
3.36:1
3.08:1
3.08:1
2.73:1		 3.36:1
3.55:1

3.70:1

L71 427 2.20:1 4spd
Turbo Hydro		 3:55:1
3.08:1		 3.36:1
2.73:1		 3.70:1
3.36:1		 4.11:1

L88 427 CI 2.20:1 4spd


Turbo Hydro		 3.55:1


3.08:1		 3.36:1


2.73:1		 3.70:1


3.36:1		 3.70:1
4.11:1
4.56:1


* Available Non-Positraction Axel




Colors / Options



Exterior Colors

CODE EXTERIOR QUANTITY
900 Tuxedo Black n/a
972 Can-Am White n/a
974 Monza Red na/
976 LaMans Blue n/a
980 Riverside Gold n/a
983 Fathom Green n/a
984 Daytona Yellow n/a
986 Cortez Silver n/a
988 Burgundy n/a>
990 Monoco Orange n/a>


Interior Colors

CODE COLOR
ZQ4 Black Vinyl
402 Black Leather
407 Red Vinyl
408 Red Leather
411 Bright Blue Vinyl
412 Bright Blue Leather
416 Green Vinyl
417 Green Leather
420 Saddle vinyl
421 Saddle Leather
427 Gunmetal vinyl
428 Gunmetal Leather




Options

RPO# DESCRIPTION QUANTITY RETAIL
19437 Base Corvette Sport Coupe 22,129 4,781
19467 Base Corvette Convertible 16,633 4,438
XXX Genuine Leather Seats 3,729 79
A01 Soft Ray Tinted Glass, all Windows 79 31,270
A31 Power Windows 9,816 63
A82 Head Rests 38,762 17
A85 Custom Shoulder Belts (Std with Coupe) 600 42
C07 Auxillary Hardtop (Covertible Only) 7,878 252
C08 Vinyl Covering (for Auxillary Hardtop) 3,266 57
C50 Rear Window Defroster 2,485 32
C60 Air Conditioning 11,859 428
F41 Special Front and Rear Suspension 1,661 36
G81 Positraction Rear Axel 36,965 46
J50 Power Brakes 16,876 42
J56 Special Heavy Duty Brakes 115 384
K05 Engine Block Heater 824 10
K66 Transistor Ignition System 5,702 81
L36 427ci, 390hp Engine 10,531 221
L46 350ci, 350hp Engine 12,846 131
L68 427ci, 400hp Engine 2,072 326
L71 427ci, 425hp Engine 2,722 437
L88 427ci, 430hp Engine 116 1,032
L89 Aluminum Cylinder Heads with L71 Engine 390 832
MA6 Heavy Duty Clutch 102 79
M20 4-Speed Manual Transmission 16,507 184
M21 4-Speed Manual Transmission, close ratio 13,741 184
M22 4-Speed Manual Transmission, close ratio, heavy duty 101 290
M40 Turbo Hydra-Matic Automatic Transmission 8,161 221
N14 Side Mount Exhaust Systems 4,355 147
N37 Tilt-Telescopic Steering Column 10,325 105
N40 Power Steering 22,866 105
P02 Deluxe wheel covers 8,073 57
PT6 F70x15 Red Stripe Tires, Nylon 5,210 31
PT7 F70x15 White Stripe Tires, Nylon 21,379 31
PU9 F70x15 White Letter Tires, Nylon 2,398 33
TJ2 Front Fender Louver Trim 11,962 21
UA6 Alarm System 12,436 26
U15 Speed Warning Indicator 3,561 11
U69 AM-FM Radio 33,871 172
U79 AM-FM Stereo Radio 4,114 278
ZL1 Special L88 (aluminum block) 2 4,718
